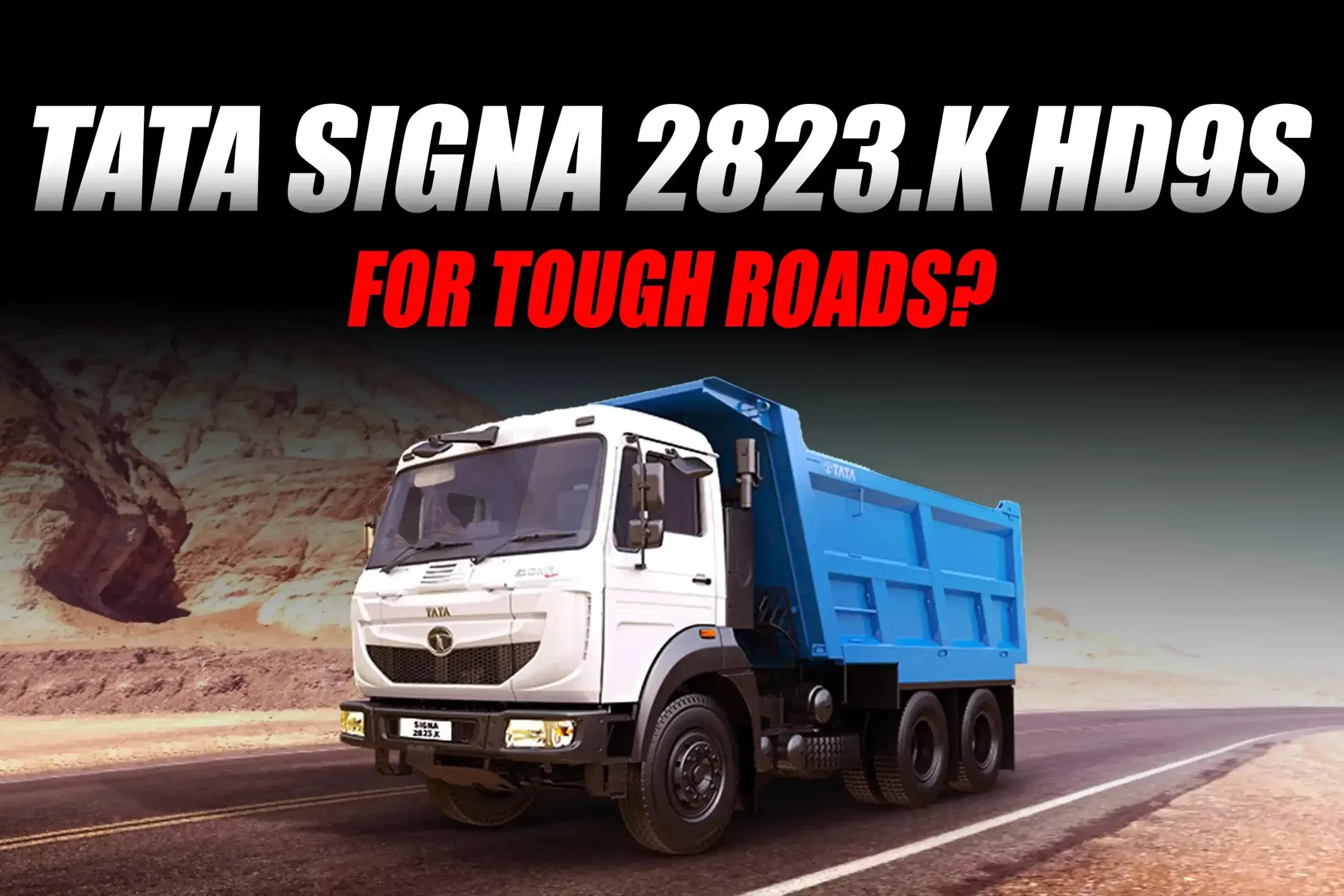

Tata Signa 2823.K HD 9S: Built for India’s Mining Roads

The TATA Signa 2823.K HD 9S caters to the Indian mining and construction industries. A combination of high load-carrying capacity, structural strength, and operational reliability forms the core features. Fleet operators essentially expect predictable uptimes, minimal maintenance time, and long-lasting performance over rough terrain. While strengths are evident, fuel consumption, ride quality, and maneuverability remain important factors.

Chassis and Structural Design

The fully reinforced ladder-type chassis is used on the truck. It resists repeated heavy cycles of tipping and can operate under conditions of rough unevenness. A 6×4 axle layout combines a forged I-beam front and single-reduction rear; this balances load distribution and traction. The front suspension consists of semi-elliptical leaf springs, while the rear uses an inverted TML bogie with an anti-roll bar.

This configuration increases durability, reliably transmitting heavy loads. However, the heavier kerb weight reduces net payload efficiency and increases fuel consumption compared with lighter vehicles.

Engine, Transmission, and Performance

The truck runs on a Cummins ISBe 5.6-litre BS6 diesel engine. It delivers 220 hp at 2300 rpm and 850 Nm torque at 1000–1600 rpm. Low-end torque improves performance on inclines and loose surfaces.

The Tata G1150 9-speed manual gearbox (crawler + reverse) allows flexible gear selection. Gear changing will be very frequent on steep grades and may fatigue the drivers. The engine remains reliable, though fuel efficiency is a bit low compared with modern automated systems.

Key Specifications

Category	Specification
Model	Tata Signa 2823.K HD 9S
GVW	28,000 kg
Engine	5635 cc
Power	220 hp @ 2300 rpm
Torque	850 Nm @ 1000–1600 rpm
Transmission	Tata G1150 9-speed manual
Axle Configuration	6×4 (front I-beam / rear single reduction)
Suspension	Front semi-elliptical leaf / Rear inverted bogie with anti-roll
Frame	Fully reinforced ladder type
Tyres	295/95 R20
Fuel Tank	300 L HDPE heavy-duty
Wheelbase (option)	3,880 mm
Applications	Mining, quarry haul, construction

Durability and Maintenance

The Signa 2823.K  HD 9S is equipped with high-quality parts and components, including a clutch and axles capable of handling repeated abuse, along with a proper braking system. As for regular maintenance, it requires an oil and/or filter change every 1,500 hours of operation and accomplishes axle service every 150,000 km.

Remote sites, even with complete access to Tata's national service network, may experience a delay in parts availability, as well. Finally, the kerb weight slightly impacts payload efficiency but is fully predictable with complete regular maintenance eliminating the possibility of unforeseen repairs ultimately reducing time delays.

Cabin and Driver Ergonomics

It has tilt-and-telescopic steering, ergonomic pedals, forced ventilation, and USB connectivity inside the cabin. The cabin design allows visibility for loading and tipping operations. However, leaf-and-bogie suspension lets some vibrations through into the cabin. Noise insulation is minimal, and drivers will tire on long shifts. The cabin is functional rather than luxurious: emphasis is on operational control.

Operational Suitability

The truck performs very well on open-pit mining roads, quarries, and heavy construction sites; this is where its strong frame, torque-rich engine, and hydraulic tipping system optimize high-load cycles. In mixed-use or lighter duty, the heavy kerb weight, fuel consumption, and limited maneuverability reduce efficiency. For best results, fleet owners must match the truck to site-specific requirements.

Economics: Payload and Fuel

The 28 t GVW allows high payloads. Torque assists in maintaining speed under full payload and lowers cycle time. Fuel use is higher than lighter tippers. Operators must weigh operational efficiency against uptime benefits, durability of components and scheduled uptime.

Conclusion

Tata Signa 2823.K HD 9S is a robust tipper designed for heavy mining and construction applications and key characteristics of this vehicle are durability and high payload cycles while achieving maximum uptime. If you have a fleet of tipper trucks and require strong structural performance and maintenance cycles, then the Signa 2823.K HD 9S is a great choice.

However, if your construction is lighter duty and mixed-road-site usage or fuel economy and comfort are your priority, then other vehicles may be more advantageous. The Signa 2823.K HD 9S is a hard-working tipping truck capable of negotiating rough terrain and offering dependability in the proper scenarios and applications.
