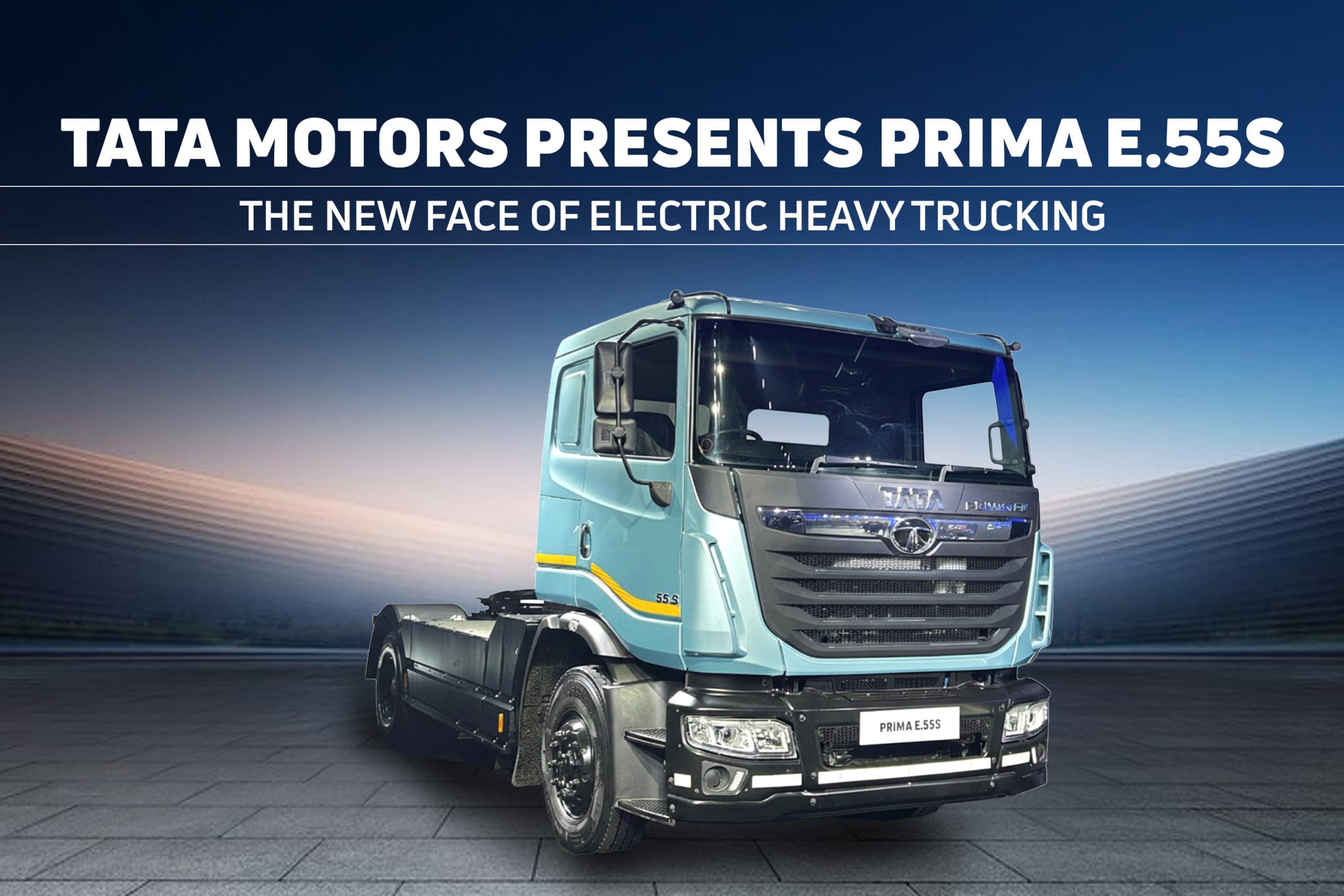

Tata Prima E.55S Unveiled at Bharat Mandapam: Electric Heavy-Duty Truck in Focus

Today, at the Bharat Mandapam event, Tata Motors rolled out 17 new trucks in various model and engine variants. All trucks are ECE R29.03 European Cabin Safety Regulation-compliant, providing greater safety for passengers with improved strength and resilience in case of an accident. Of particular interest in this list is the Tata Prima E.55S model truck, which weighs 55,000 kg and is run on fully electric powertrains. This is Tata Motors' move into the top-end electric heavy-duty truck market, where reliability and readiness are as vital as speed.

Positioning and Operational Context

The Prima E.55S is intended for organized freight transportation. Trucks in the mass range of 55 tons are mostly used in container transport, logistics systems linked to ports, transport of bulk goods and regular regional transport. The Prima E.55S is not intended for unrestricted transportation, such as trucking on highways. The Prima is intended for specific routes where the charging schedule can be organized. This is specific to electric trucks. Electric trucks differ in their operations compared to diesel trucks.

It features a Prima cabin platform, now approved under ECE R29.03 regulations, thus adding a global perspective to vehicle safety standards. It meets the requirements for a fleet investment lifetime norm on protecting the driver.

Electric Powertrain and Performance

The Tata Prima E.55S comes equipped with a high-voltage motor that has an electric power specification of HV 2500 per phase, with an ultimate torque of 2455 Nm and an intermittent peak power of 470 kW. Such performances are important in practical situations and not in absolute terms. Higher torque ensures easy pull-off at the time of start-off under complete load, easy movement at an angle and frequent changes of speed. The electric motor starts producing torque instantly unlike an internal combustion engine, which has effects on low-speed movements at the time of starting on an incline.

Battery Capacity and Range

The energy comes from a 435 kWh lithium-ion battery pack, designed for efficiency at scale. It is precisely this capacity that determines the feasibility of operation, especially for heavy-duty trucks whose energy consumption jumps exponentially with increasing payload and varying terrain. According to the manufacturer, it is capable of reaching a range of up to 350 kilometers. Given the real world is not ideal, actual performance will depend on payload, driving patterns, usage of regenerative braking, road gradient and need for auxiliary power.

Drivetrain and Suspension

The vehicle has an E-Axle Drive system with rear-wheel drive and 4x2 rear-wheel drive configuration. Incorporating the motor into the axle results in fewer mechanical components, doing away with the need for transmission between axles by means of a prop shaft.

In order to deal with high axle loads and ensure stability, the Prima E.55S is equipped with parabolic leaf spring suspension in the front and a bell crank in the rear. The vehicle runs on 295/90 R20 tyres, designed to provide high endurance on highways and under high loads. Tyre consideration is particularly important in electric vehicles because of the effect of rolling resistance on energy efficiency.

Braking and Gradeability

Braking is controlled by means of an Electronic Braking System that supports regenerative braking. The recovery of kinetic energy is supported during the braking process. The choice between drum brakes or disc brakes is optional.

The gradeability of the truck is 28 percent, allowing it to ascend steep slopes even while loaded. This is an important attribute, especially on routes that have flyovers, ports, industrial areas and hills.

Tata Prima E.55S – Technical Specifications

Parameter	Specification
Model	Tata Prima E.55S
GVW	55,000 kg
Traction Motor	HV 2500 / Phase
Maximum Power	470 kW
Maximum Torque	2455 Nm
Battery Pack	Lithium-ion, 435 kWh
Transmission	E-Axle Drive
Drive Configuration	4x2, Rear-Wheel Drive
Front Suspension	Parabolic Leaf Spring
Rear Suspension	Bell Crank Suspension
Tyres	295/90 R20
Brakes	EBS with Regeneration (Drum/Disc Optional)
Range	Up to 350 km
Gradeability	28%
Cabin Safety	ECE R29.03 Certified

Conclusion

In the case of Tata Prima E.55S, a specific application-oriented strategy is adopted in electric heavy-duty trucking. This truck, having a high GVW, large batteries and adherence to the European cabin safety standards, meets the basic requirements for structured freight transport. However, it ultimately depends on how effectively the capabilities of a truck could be combined with the routes, which would make Tata Prima E.55S an effective move towards high-loaded electrification instead of a purely symbolic action.
