Tata Signa 4825 TK

Tata Signa 4825 TK Truck Features

Tata Signa 4825 TK Detailed Overview

• Engine and Performance

  The Tata Signa 4825.TK is powered by a 6.7-litre Cummins ISBe series diesel engine, which is capable of producing a maximum power output of 249 bhp and a maximum torque output of 950 Nm. The transmission on duty in the Tata Signa 4825.TK is a G1150 series 9-speed manual gearbox with a crawler and one reverse.

  Summary

  Powering the Tata Signa 4825.TK is a 6.7-litre diesel engine, which is coupled to a 9-speed manual gearbox and produces 249 bhp of power and 950 Nm of torque.

• Suspension and Brakes

  The Tata Signa comes armed with a Forged I beam Reverse Elliot type - Drop beam front axle and Single reduction, extra heavy duty, hypoid gears, and fully floating axle shafts with Differential Lock at the rear. It also comes with a suspension setup comprising of a Parabolic Leaf spring with Semi Elliptical Leaf spring at the front and Semi Elliptical Leaf spring with Bogie suspension at the rear, with the rear getting Air suspension in the lift axle. It rolls on 11R20 tyres.

  Summary

  With a leaf spring suspension at both ends, the Tata Signa 4825.TK comes with 11R20 radial tyres on all sides.

• Payload

  Tata Motors hasn’t revealed the actual dimensions of the Signa 4825.TK, but has revealed that it has a gross vehicle weight of 47,500 kg and a wheelbase of 6750 mm. The truck claims a payload capacity of around 38 tonnes, which makes it one of the best in its category, in this regard. The Tata Signa 4825.TK is offered in two configurations for the load body options – 29 m3 box and 18 m3 box.

  Summary

  For the Signa 4825.TK, Tata Motors claims a payload capacity of 38 tonnes.

• Exterior

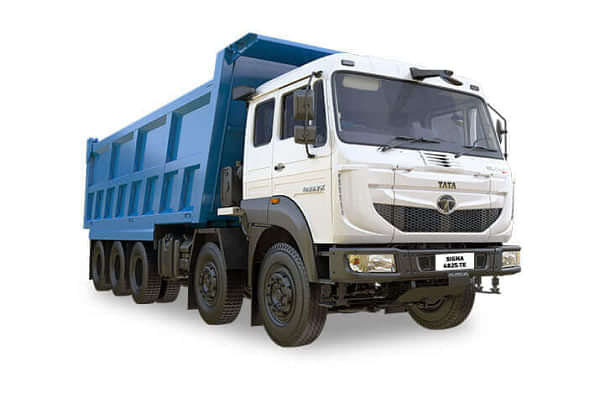

  Marking a huge departure from the trucks of the previous generation, the Tata Signa 4825.TK has a refreshing new-generation design on the outside. One of the most contemporary-looking heavy-duty trucks is the Tata Signa 4825.TK comes with a broad-looking frontal body, which has wide C-shaped curves on the outer corners of the front apron, which also integrated air vents within them. The lower central part of the front apron is covered by a wide-looking trapezoidal grille, while the headlamps and clear lens turn indicators come integrated into the corners of the black-coloured metallic bumper.

  Summary

  While the lower part of the apron comes with a wide grille, the headlamps and turn indicators in the Tata Signa 4825.TK is placed in the front bumper.

• Interior

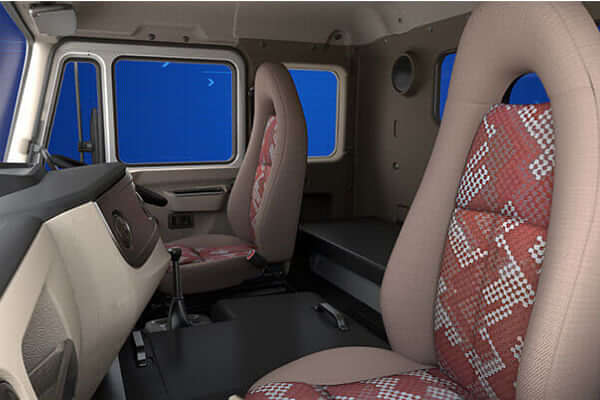

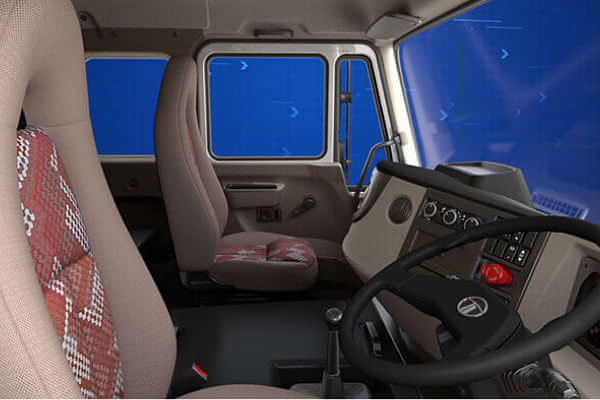

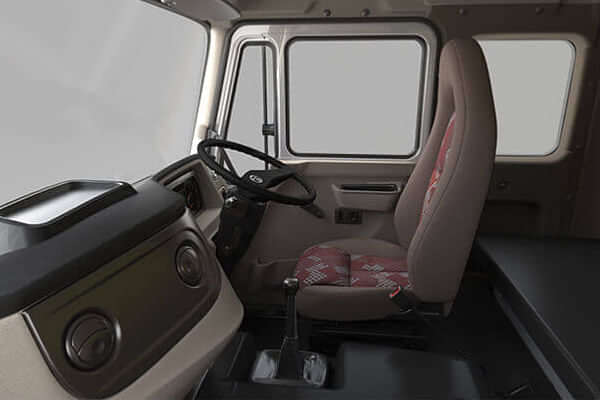

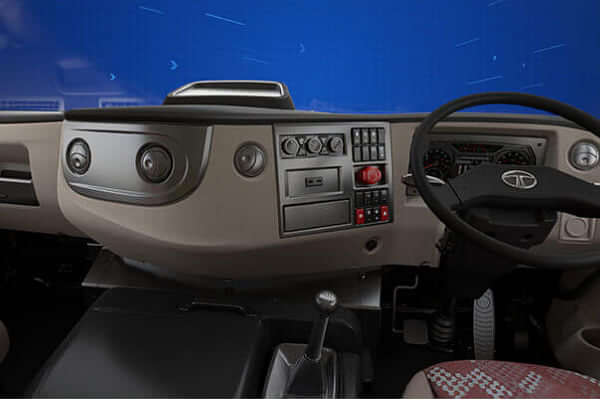

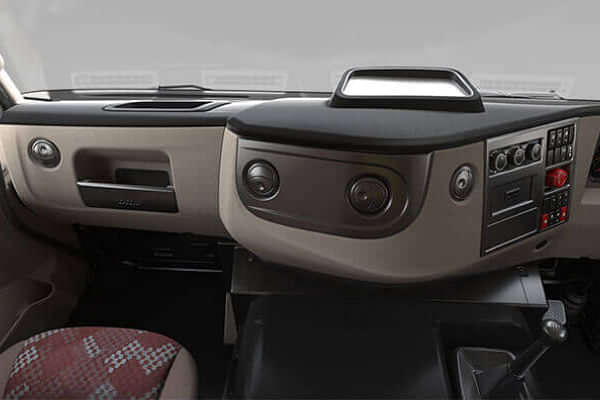

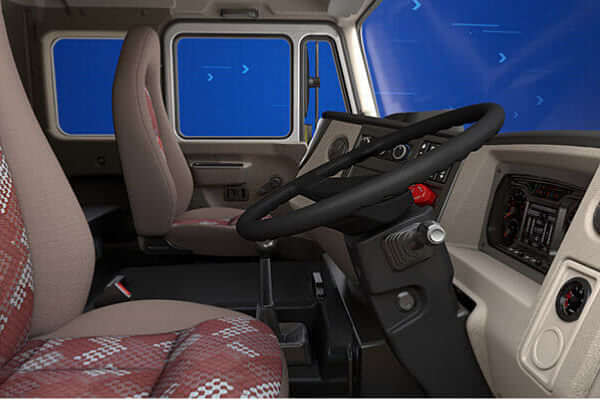

  The Tata Signa 4825.TK has a wide and innovative-looking curved design for the dashboard, which is finished in a dual-tone black and greige theme. The truck comes with a simple two-spoke steering wheel, with a comprehensive analogue instrument console behind it. The curved centre console has two faces here – while the side facing the driver accommodates an array of switches for multiple functions and AC blower levers, the side facing the co-driver side has rounded AC vents encased within a curved housing.

  Summary

  The dashboard of the Tata Signa 4825.TK looks wide, thanks to the curved design of the centre console which faces both towards the driver and co-driver.

• Features

  The Tata Signa 4825.TK is equipped with a few noteworthy features, like tilt and telescopic power steering, engine brake, three-mode fuel economy switch, new-generation telematics, LED tail lamps, blind spot mirrors and air conditioner blowers.

  Summary

  The Tata Signa 4825.TK is equipped decently with features like AC, blind spot mirrors, and telematics.
