Tata Signa 3523.TK

The Tata Signa 3523.TK is built for demanding environments. Construction corridors, mining belts, large infrastructure projects, this is where it operates daily. It is a 35-ton tipper designed to carry heavy material without constant mechanical stress or performance drop. The overall structure feels purpose-driven. A strong chassis. A durable 20 m³ dumper body. A layout that supports repetitive loading cycles under full payload conditions. For fleet operations where uptime directly affects revenue, this truck fits naturally.

It is not designed for highway glamour. It is built for ground reality.

Performance & Engine

A Cummins ISBe 5.6L BS6 generating 220 horsepower HP as well as 850 Nm will power us entirely. As our primary focus when tuning the torque curve of the engine was for pulling heavy loads, this is particularly beneficial for driving on the internal quarry roads while climbing or through loose-packed ground with a full load of trucks.

The 9-speed manual gearbox ensures controlled power delivery. Gear ratios are spaced well enough to handle mixed terrain, from paved stretches to uneven construction patches.

Fuel efficiency generally ranges between 2.5–3.5 km/l, depending on load, route gradient and driving cycle. In tipper operations, consistency in fuel consumption matters more than peak figures. The engine maintains predictable output even under pressure.

Capacity & Operational Strength

With a Gross Vehicle Weight of 35,000 kg and a payload capacity of approximately 26,000 kg, the truck is suited for bulk material transport — aggregates, sand, coal and overburden.

The 5,580 mm wheelbase supports stability during loaded runs. The 42% gradeability allows it to manage steep internal site roads without excessive strain.

The 20 m³ dumper body supports efficient loading and unloading cycles. Body proportions match common excavator bucket capacities, reducing time loss during operations.

Cabin & Driver Environment

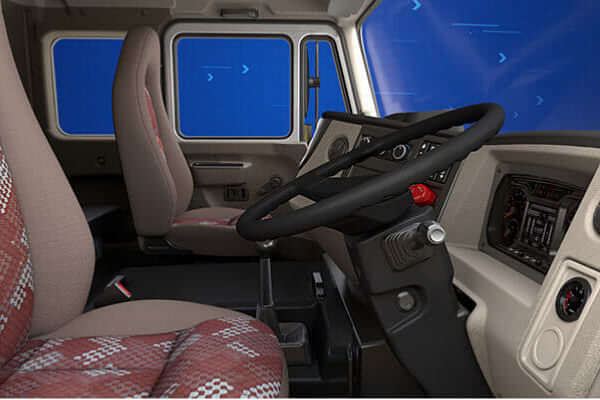

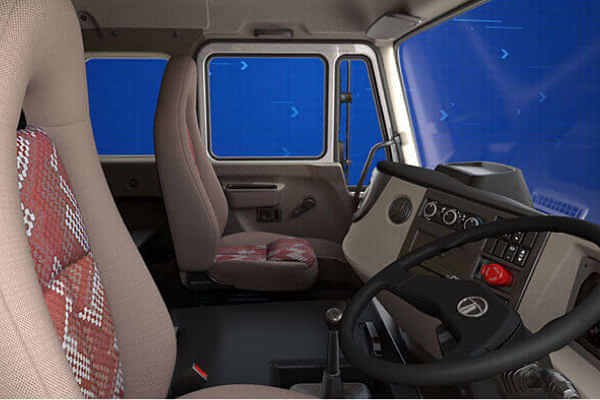

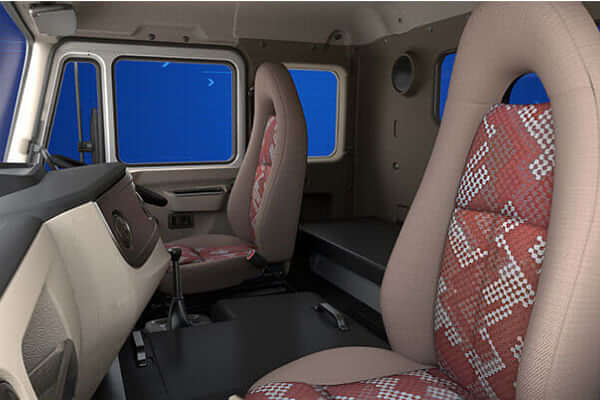

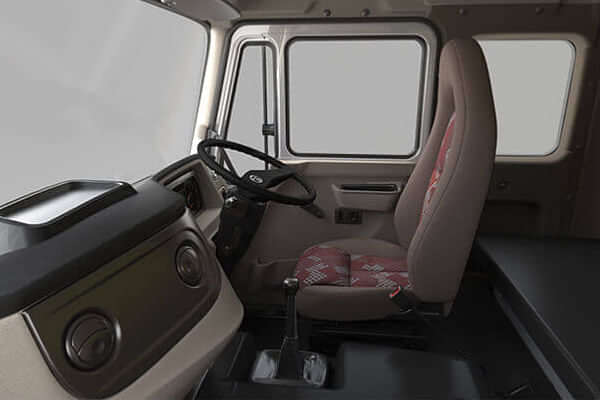

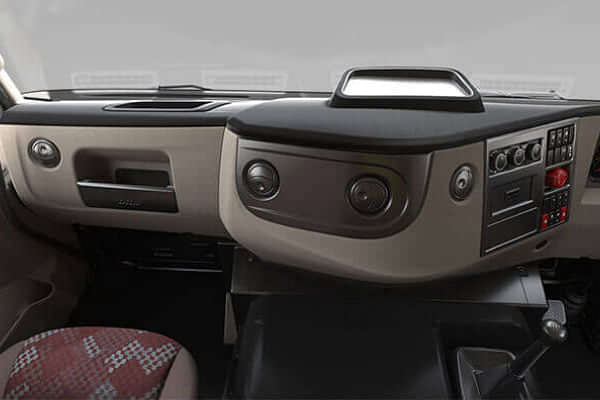

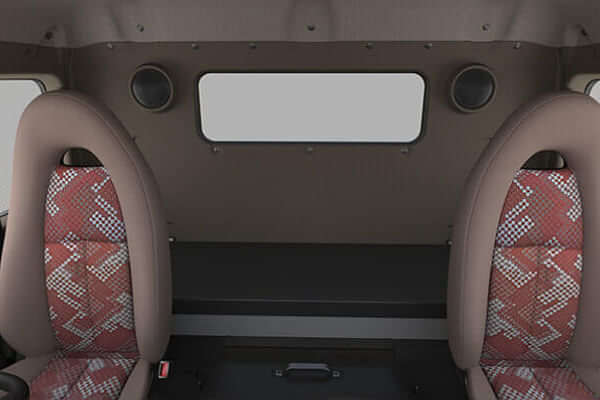

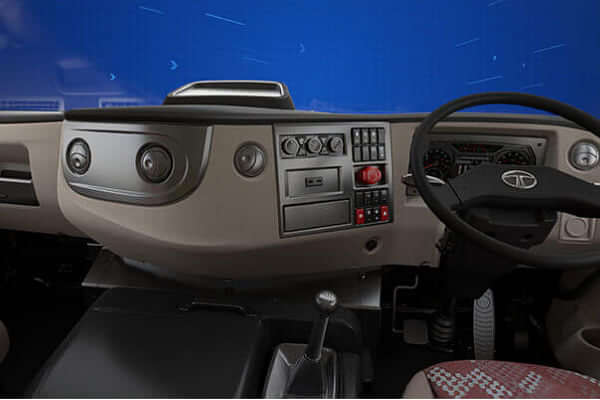

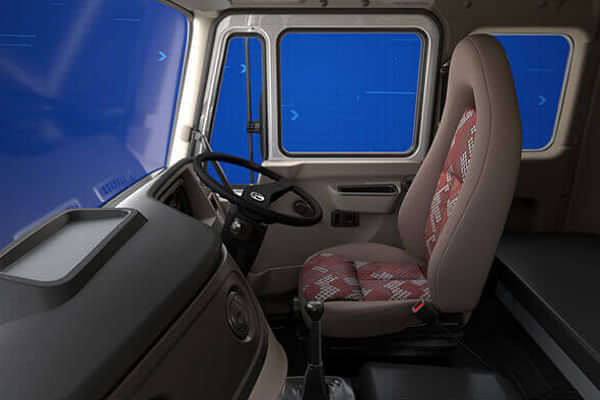

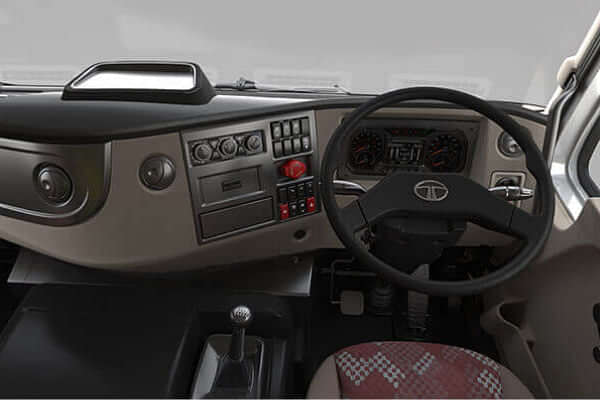

The Signa day cabin offers seating for driver plus two passengers. The layout remains practical and functional. Controls are placed within easy reach. Visibility from the driver’s seat is clear, which helps during maneuvering in tight loading areas.

Ventilation and seating ergonomics are adequate for long work shifts. While not designed as a premium highway cabin, it reduces fatigue during repetitive site movement.

Function takes priority over styling.

Durability & Maintenance

The Tata Signa 3523.TK chassis is made from high-strength steel to ensure it can hold up under heavy-duty conditions and rugged terrain. The front suspension uses parabolic leaf springs and the rear uses semi-elliptical leaf springs to provide good stability and a smooth ride under maximum loaded conditions. The team behind the design of the modular cowl tipper chassis found ways to improve serviceability for better operator uptime. Say goodbye to high maintenance costs with the use of only high-quality components and by having easily accessible service points. This commercial vehicle is designed for long term durability, low maintenance and consistent industrial strength performance.

Fuel Efficiency & Emissions

This engine complies with the emission requirements and also maintains the operational balance for the vehicle. Optimization of the torque level ensures a steady pulling capacity without the need for running the vehicle at high revs. Efficiency of the fuel consumption level, between 2.5 to 3.5 km/l, helps operate the vehicle in a cost controlled manner for the category of a heavy-duty tipper.

Competitors in the Segment

In the 35-ton tipper category, the Tata Signa 3523.TK competes with:

• Ashok Leyland 3525 Tipper


• BharatBenz 3528CM


• Eicher Pro 8035XM


While some alternatives may offer higher horsepower figures, the 3523.TK positions itself through balanced torque delivery, structural durability and strong service reach.

Key Specifications

• Engine: Cummins ISBe 5.6L BS6, 6-cylinder


• Power: 220 HP


• Torque: 850 Nm


• Transmission: 9-speed manual gearbox


• GVW: 35,000 kg


• Payload Capacity: 26,000 kg


• Wheelbase: 5,580 mm


• Fuel Tank: 300 litres


• Dumper Body: 20 m³


• Suspension: Front parabolic leaf springs, rear semi-elliptical leaf springs


• Tyres: 295/90 R20 radial


• Cabin: Day cabin (Driver + 2 passengers)


• Gradeability: 42%


Why Choose Tata Signa 3523.TK

This truck is a practical, cost-effective and very reliable solution for large commercial operations where you will carry heavy loads. It has all the features that are necessary for moving goods. With an engine that is developed for both excellent fuel economy and meeting down-to-earth emissions standards, the Tata Signa 3523.TK has a BS6 rating. In addition to superior construction and all of these other features, it is also very comfortable for the driver's use. There is little to no doubt that this truck can be used in a variety of ways, both inside and out of cities.
