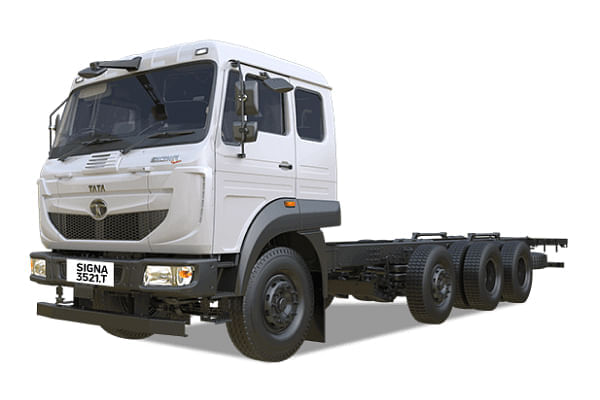

Tata SIGNA 3521.T

Tata SIGNA 3521.T Key Features

Tata SIGNA 3521.T Variants

The Tata SIGNA 3521.T is offered in 4 variants - the base model of Tata SIGNA 3521.T is 3794110 and the top variant is 3877300 which come with Diesel, 197 HP, 5000 cc and 365 L.

Tata SIGNA 3521.T Detailed Review

• Overview

  Tata Signa 3521.T is a heavy-duty 12-wheel, 4-axle rigid truck. Ideal for transporting heavy, bulky and voluminous cargo on long-haul routes. such as agriculture, produces cement, construction aggregates, sand, market loads. cold chain, industrial goods, FMCG. edible oil, milk, chemical, bitumen, etc. Packed with Tata Motors 6-key performance elements of superior performance. lower total-cost-of-ownership, comfortable and convenient truck, many choices, connectivity, and peaceful ownership experience. The Signa 3521.T is a well-established rigid truck. and shared a lot of similarities and specs with its Signa 3518.T expect the more powerful engine.

  Summary

  null

• Engine and Gearbox

  To offer most competition trucks in the segment and all the benefits to speed up the transport business Tata Motors has refined this truck a lot. The 3521.T gets a higher power TATA 5.0L Turbotronn 200 HP engine, which produces a greatest torque of 850 Nm. And blends well with Tata's in-house G950, 6-speed manual synchromesh gearbox. The engines' key strengths include 6% higher torque for enhanced load pulling. higher low-end torque for better restartability, and superior gradeability for multi-terrain suitability. Better fuel economy comes by the high torque and low RPM. The two-stage fuel filter for optimized fuel usage, and electronic viscous fan for greater fuel savings. The truck is fitted with heavy-duty Tata 7T reverse Elliot type front axle and at the rear a single reduction RA110HD. The exhaust after-treatment system is robust globally proven for Euro VI equal compliance and lesser DEF consumption in SCR due to partial NOx control through the EGR route. The key features are airless DEF doser, DEF quality sensor for ensuring DEF concentration for uninterrupted SCR functioning. 60 L DEF tank for longer uninterrupted trips enabling lower DEF fills.

  Summary

  null

• Suspension and Breaks

  The Tata Signa 3521.T has a parabolic leaf spring suspension system at the front and rear. which provides good stability and comfort while driving. The suspension is designed to handle heavy loads and uneven terrain. As for the brakes, the truck has air brakes with an ABS system. This ensures effective braking and helps to prevent skidding or loss of control during emergency stops. The brake system is designed to meet safety standards and ensure driver and passenger safety.

  Summary

  null

• GVW and Payload Capacity

  The Tata Signa 3521.T has a length of 10.5 meters, a width of 2.6 meters, and a height of 3.7 meters. It has a wheelbase of 5,550 millimeters, which provides good stability and maneuverability on the road. The truck has a payload capacity of up to 22 tons, which is suitable for transporting heavy goods over long distances. The payload capacity is dependent on factors such as road conditions, terrain, and weather.

  Summary

  null

• Exterior

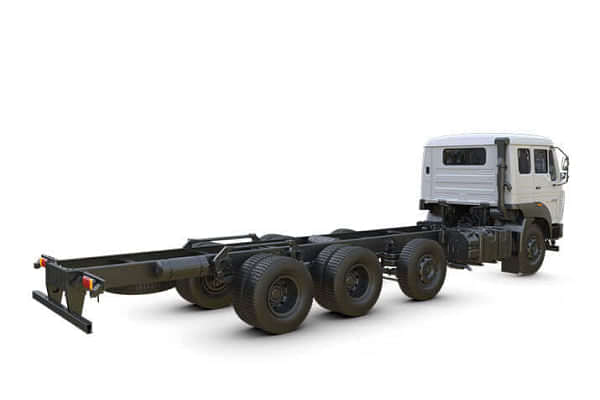

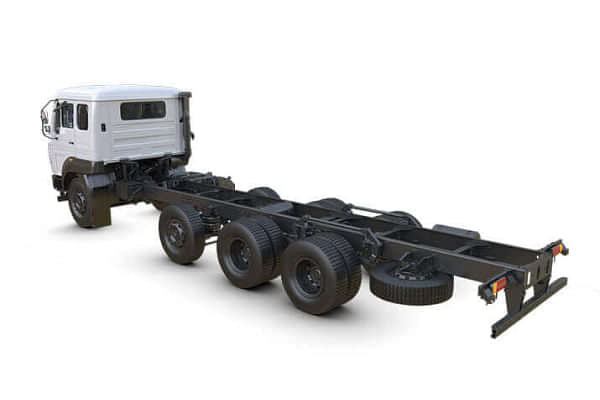

  The exterior of Signa 3521.T is quite like the HCV range of Tata Motors with the same signature Signa cabin, with a familiar look and feel. This truck is a 35,000 kg gross vehicle weight category haulage truck that takes heads-on the competition in the segment. The ladder-type, heavy-duty chassis frame comes in 285 x 65 x 8.5 Dimensionss. For better fuel economy through reduction of an aerodynamic drag though containerized applications. 3521.T is available in 5205 mm, 5505 mm, and 5905 mm, and 6750 mm wheelbases and deck length options of 6706 mm, 7315 mm, 8230 mm, and 9754 mm. The radial tube tyres at the back and front with 295/90R20 sizes. It is designed for better payload capacities with low rolling resistance to get better fuel economy. The tyres are designed with a 90% aspect ratio for increased axle-load norm payload and offer 3-4% higher fuel mileage due to LRR. The polymer fuel tank size is 365 liters with an anti-fuel theft mechanism.

  Summary

  null

Tata SIGNA 3521.T User Review

• Latest
• Positive
• Critical

• TA

  Taufeek Ali

  Sep 16, 2022

  4.2
  Abhi kuch mahina pehley hi maine yeh truck khareeda aur abhi tak main isse bohot hi khush hoon.
