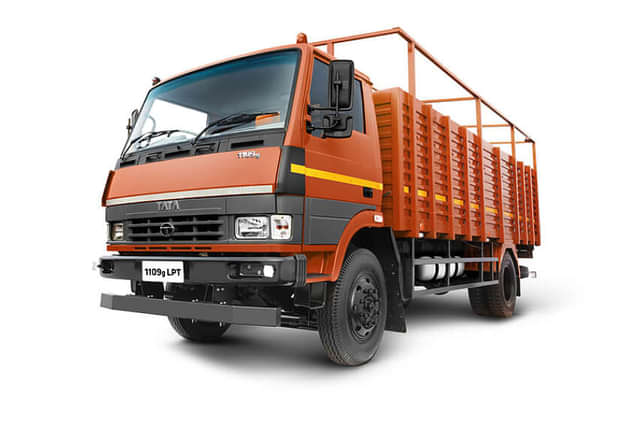

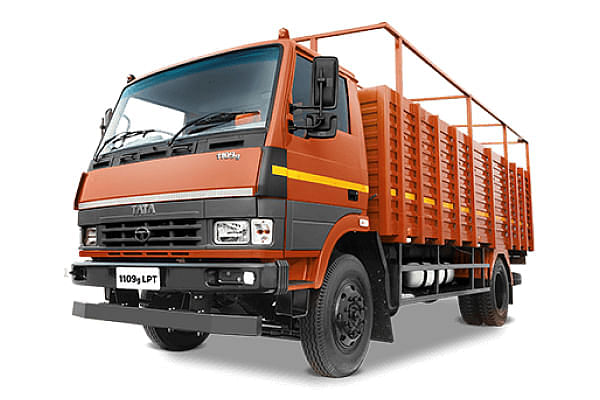

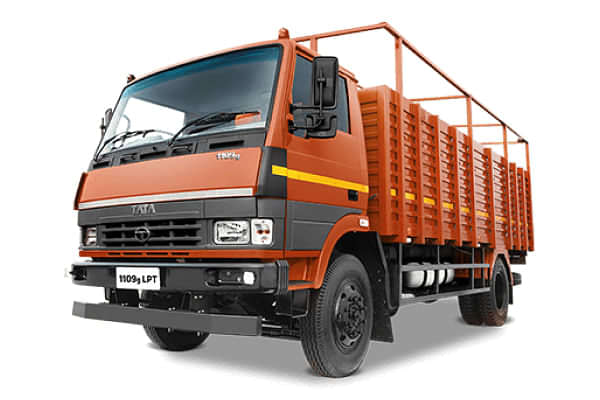

Tata 1109g LPT

Tata 1109g LPT Key Features

Latest On Tata 1109g LPT

Tata 1109g LPT Variants

The Tata 1109g LPT is offered in 9 variants - the base model of Tata 1109g LPT is 1784000 and the top variant is 2147910 which come with CNG, 83 HP, 4 cylinders, 3783 cc and 430 L.

Tata 1109g LPT Detailed Review

• Engine and Performance

  The Tata 1109G LPT sources its power from a 3.8-litre SGI NA BS6 diesel engine, which can produce a maximum power output of 116 PS and a peak torque output of 285 Nm. This diesel engine is paired to a 5-speed GB 27 manual gearbox, with the transmission unit also including a 280mm single-plate dry friction clutch.

  Summary

  The Tata 1109GLPT gets a 3.8-litre diesel engine, which claims a maximum power of 116 PS and a maximum torque of 285 Nm.

• Suspension and Brakes

  Underneath the Tata 1109G LPT, there is a suspension combination of a semi-elliptical leaf spring with hydraulic double-acting telescopic shock absorbers at the front and a semi-elliptical leaf spring at the rear. The braking combination employed on duty in the Tata 1109G LPT is dual circuit full air S-cam brakes with auto slack adjuster equipped drum brakes at both ends. The truck rides on 8.25x16 tyres all around.

  Summary

  With 8.25x16 tyres and drum brakes all around, the Tata 1109G LPT gets leaf spring-based suspension at both front and rear.

• Payload

  The Tata 1109G LPT is available in two wheelbase versions – 3800mm and 4920mm. While the 3800mm version measures 5217mm long, 2117mm wide and 1822mm tall, the 4920mm version measures 6167mm long, 2117mm wide and 1822mm tall. The truck has a gross vehicle weight of 11200 kg and claims a payload capacity of 7250 kg.

  Summary

  The Tata 1109G LPT claims a gross vehicle weight of 11200 kg and a payload capacity of 7250 kg, while available in two-wheelbase versions.

• Exterior

  The Tata 1109G LPT is one of the oldest-looking trucks in the current new-age lineup of light and medium-duty trucks available from Tata Motors. This overall design of the 1109G LPT now looks much more familiar with its all-rectangular influence. The lower half of the truck below the front windshield gets a rectangular apron, which is covered by a black plastic housing in its entire lower half. This plastic housing gets rectangular halogen headlamps in its lower corners while having horizontal slats working as the main grille between the headlamps. The outer corners of the headlamps get rectangular turn indicators as well.

  Summary

  There’s a lot of rectangular influence in the overall design of the Tata 1109G LPT, which is visible in the design of the headlamps and the grille at the front.

• Interior

  On the inside too, the overall layout of the Tata 1109G LPT looks quite dated, but the cabin is highly functional and practical with good ergonomics. This all-black cabin of the 1109G LPT gets a basic design for the two-spoke steering wheel and the full-analogue instrument console behind it. The rectangular influence is visible in the centre console as well, for the parts like AC vents, the console for the audio system and panels for switches.

  Summary

  The all-black basic-looking cabin of the Tata 1109G LPT gets rectangular-shaped AC vents, a centre console and panels of switches.

• Features

  The cabin of the Tata 1109G LPT feels quite basic with features like an audio system, AC vents, power steering and a closed glovebox on the co-passenger side of the dashboard.

  Summary

  The decently long equipment list of the Tata 1109G LPT includes power steering, manual AC and an audio system.

Tata 1109g LPT User Review

• Latest
• Positive
• Critical

• AK

  Amit Kumar

  Sep 15, 2022

  4.6
  mileage range of an average on this truck between 7-9 kmpl which is pretty good.
