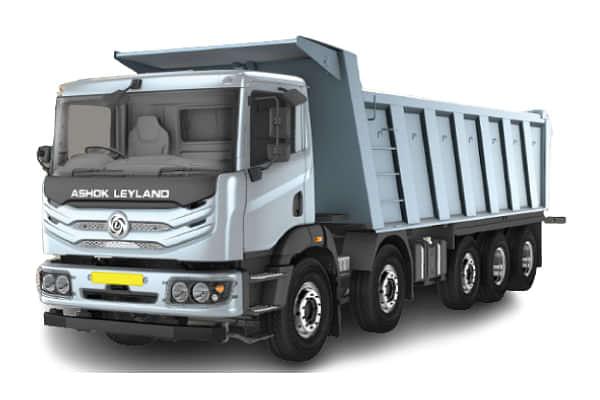

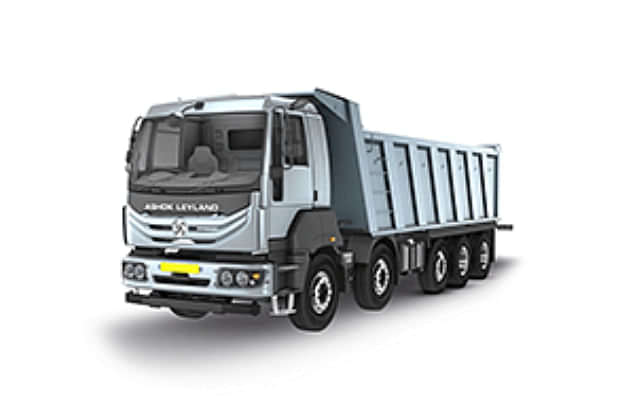

Ashok Leyland 4220 Tipper 10x2

Ashok Leyland 4220 Tipper 10x2 Truck Features

Ashok Leyland 4220 Tipper 10x2 Detailed Overview

• Overview

  Using cutting-edge technical innovations, Ashok Leyland 4220 Truck is produced with great performance. This type is made by the Ashok Leyland company, which is renowned for producing commercial vehicles of the highest caliber. You may find information about the Ashok Leyland 4220 10x2 MAV's price, features, mileage, reviews, emission standards, picture, and other specifications.

• Engine and Gearbox

  This rigid truck comes with the H series 6 cylinder, CRS with iGen-6 technology BS6 engine, 200HP of power, and 700 Nm of torque sufficient for carrying full-load cargo.

  Summary

  Summary: Equipped with a powerful H series 6-cylinder, BS6 engine, delivering 200HP and 700 Nm torque for full-load cargo transport.

• Suspension and Breaks

  The semi-elliptic multi-leaf front suspension has the option of a parabolic spring. There is a slipper-ended suspension option for the rear suspension, which is a non-reactive suspension.

  Summary

  Summary: Offers a choice between semi-elliptic multi-leaf and slipper-ended rear suspension options for versatile performance.

• Axle and Brakes

  Fully floating single-speed rear axle with unitized wheel bearings as an option. With a reverse Elliot type and the option of unitized wheel bearings and an anti-roll bar, the front axle is made of forged I sections.

  Summary

  Summary: Features fully floating single-speed rear axle and a sturdy front axle with various options for wheel bearings and anti-roll bar.

• Cabin

  This rigid truck is available with a variety of cabin choices, including high side deck, fixed side deck, and cowl and chassis.

  Summary

  Summary: Provides diverse cabin choices, including high side deck, fixed side deck, and cowl and chassis.

• Wheelbase

  With a wheelbase of 6600 mm, the cargo body choices are 28, 30, and 32 ft; the overall width is 2570 mm, and the lengths are 10960, 11560, and 11960 mm. There are many truck configurations available, including cabin and chassis, cowl and chassis, full and high side deck, and luxury, value, and economy cabin choices.

  Summary

  Summary: With a 6600 mm wheelbase, it offers cargo body options of 28, 30, and 32 ft, along with various cabin and chassis configurations for flexibility in transport solutions.
