Tata LP 410 Chassis
- 36 AC Chassis
- 26 seats
- • 75 HP
- • 300 Nm
₹16.44 LakhView price breakup - 36 Chassis
- 36 seats
- • 99.3 HP
- • 300 Nm
₹15.61 LakhView price breakup - 33 Chassis
- 33 seats
- • 99.3 HP
- • 300 Nm
₹14.19 LakhView price breakup - 29 Chassis
- 29 seats
- • 99.3 HP
- • 300 Nm
₹13.59 LakhView price breakup
*ex-showroom price in
- LP 410 Chassis
- Price
- Variants
- Images
- Specs
- Reviews
- Q&A
- Videos
- EMI
- Brochure

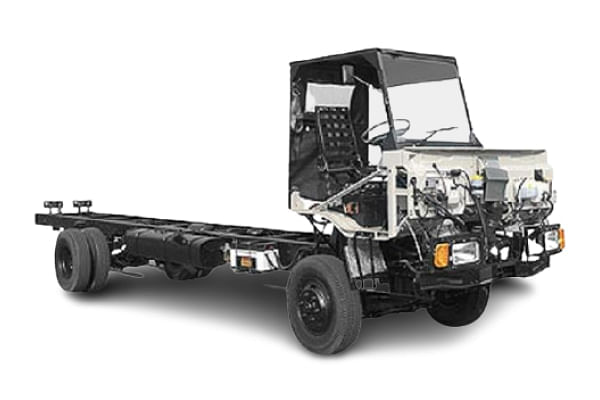

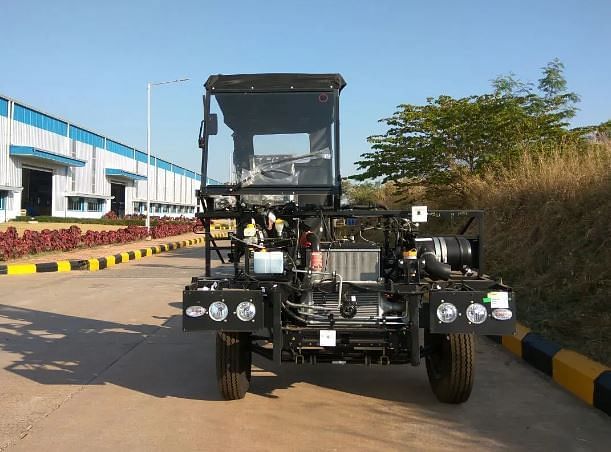

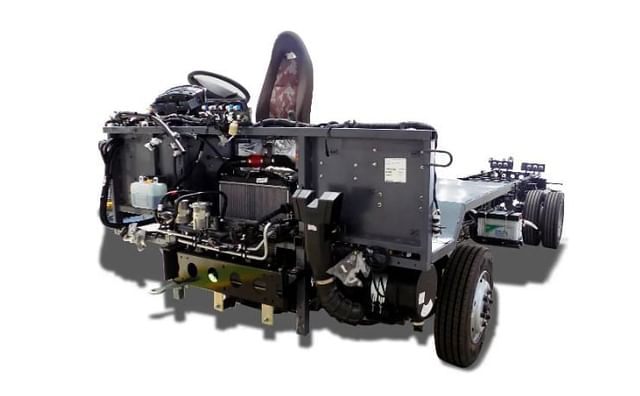

Tata LP 410 Chassis Images
Tata LP 410 Chassis
Tata LP 410 Chassis
Tata LP 410 Chassis
Tata LP 410 Chassis Detailed Overview
Overview
Discover the superior design and features of the Tata LP 410 Chassis, specifically the LP 410/36 AC variant. Built with a focus on accommodating more passengers and offering a compelling value proposition for body builders, this chassis excels in school and staff applications.
SummaryDesign and Build
Tata LP 410 Chassis is ingeniously designed with a longer wheelbase and wider chassis frame, ensuring ample saloon space for a greater number of passengers. The 29WB and 33WB options cater to diverse needs. The bus frame is thoughtfully engineered to accommodate a bus width of 2340 on 4SP CR platforms. The LP 410/36 AC variant stands out with its air-conditioned feature.
SummarySummary: Tata LP 410 Chassis prioritizes spaciousness and versatility, making it an ideal choice for school and staff applications, with a focus on accommodating more passengers.
Features
The LP 410/36 AC variant boasts a comprehensive set of features, including a 4 Years/4 Lakhs kms Warranty, fuel-efficient 4SP CR Engine with increased power, radial tubeless tyres, and air brakes for enhanced safety. The chassis model LP 410/36 AC has a wheelbase of 3600 mm, offering stability and flexibility in body-building. The Power Steering, Parabolic Suspension, and a 120-liter fuel tank contribute to a smooth and efficient performance.
SummarySummary: Tata LP 410/36 AC comes loaded with features that ensure a powerful, efficient, and safe performance, providing a reliable and comfortable travel experience.
Technical Specifications
The LP 410/36 AC is equipped with a TATA 4SP CR engine, delivering 74 kW @ 2800 r/min power and a torque of 300 Nm @ 1200-2200 r/min. The gearbox features a GB400 - Cable Shift with 5+1 speeds, and the chassis includes air brakes for responsive braking. The parabolic suspension, power steering, and a 120 Ah battery contribute to a robust and reliable performance.
SummarySummary: Tata LP 410/36 AC's technical specifications showcase its powerful engine, efficient gearbox, and safety features, ensuring a reliable and high-performance chassis.
Warranty and Value Proposition
With a warranty of 4 Years/4 Lakhs kms, the LP 410/36 AC offers an assurance of durability and reliability. The chassis provides an overall value proposition for customers involved in building bodies, emphasizing longevity and performance.
SummarySummary: Tata LP 410/36 AC stands by its durability and reliability, backed by an impressive warranty, making it a valuable choice for body builders and customers alike.
Dimensions and Capacity
The LP 410/36 AC boasts a fuel tank capacity of 120 liters, a Gross Vehicle Weight (GVW) of 7000 Kgs, and a maximum width of 2248 mm. These dimensions contribute to the chassis's efficiency, providing ample fuel storage and load-carrying capacity.
SummarySummary: Tata LP 410/36 AC's dimensions highlight its fuel efficiency, load-carrying capacity, and overall suitability for diverse transportation needs.
