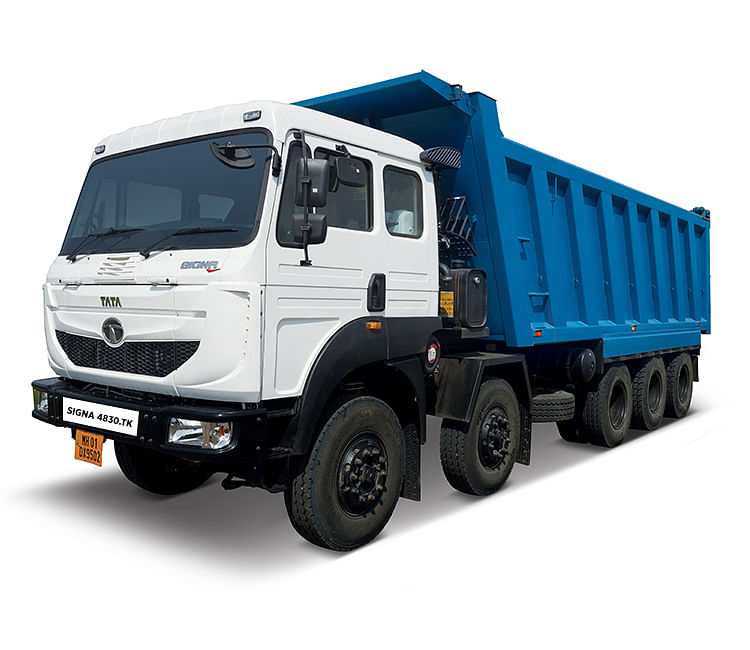

टाटा Signa 4830.TK. FBV

टाटा Signa 4830.TK. FBV ट्रक स्पेक्स और फीचर्स

टाटा Signa 4830.TK. FBV कीमत सूची और वेरिएंट्स

टाटा Signa 4830.TK. FBV को 3 वेरिएंट में पेश किया गया है - टाटा Signa 4830.TK. FBV का बेस मॉडल 6034000 है और टॉप वेरिएंट 6793000 है। जो साथ आता है Diesel, 6702 cc, 300 L and 47500 Kg.

टाटा Signa 4830.TK. FBV विस्तृत जानकारी

• इंजन और प्रदर्शन

  The Tata Signa 4830.TK FBV is equipped with a 6.7L Cummins BS6 OBD-II diesel engine, producing 300 HP at 2300 rpm and 1100 Nm of torque between 1100–1700 rpm. This powertrain is mated to a 9-speed manual Tata G1150 gearbox with a 430 mm single plate dry friction clutch, designed to handle high-torque conditions. The engine’s flat torque curve provides consistent pulling power, reducing gear shifts and improving fuel efficiency under load. The truck is built for off-road and rough terrain usage in demanding applications such as mining and construction, offering superior traction and gradeability.

  Summary

  Strong and reliable engine performance tailored for heavy loads and off-road operations.

• आयाम और पेलोड

  With a Gross Vehicle Weight (GVW) of 47,500 kg and a wheelbase of 6800 mm, the Tata Signa 4830.TK FBV is among the largest in its segment. It is available with 18 Cu.M and 29 Cu.M box body options, making it ideal for bulk material transport like coal, iron ore, or aggregates. The 10x4 axle configuration distributes load efficiently across 5 axles, enhancing stability and reducing wear on components. Its long chassis ensures high payload capacity while maintaining structural rigidity, contributing to reduced trips and increased productivity.

  Summary

  Huge payload capacity with optimized weight distribution for efficient long hauls.

• सस्पेंशन और ब्रेक्स

  The truck features a bell crank suspension at the rear with heavy-duty multiple leaf springs, designed for durability and load absorption in extreme terrain. The front suspension includes semi-elliptical leaf springs with shock absorbers to minimize cabin vibration. For braking, the truck is equipped with full air S-Cam dual circuit brakes and ABS (Anti-lock Braking System), providing improved safety and control, especially during sudden stops or on slippery roads. It also includes parking brakes and engine brakes for additional control during descents.

  Summary

  Heavy-duty suspension and advanced braking ensure safety and reliability in rough conditions.

• Interior and Exterior

  The Signa 4830.TK FBV features a spacious and ergonomically designed sleeper cabin with a tiltable mechanism for easy engine access. The cabin includes power steering, adjustable driver seat, air conditioning, and an advanced driver information display. Tata’s focus on driver comfort is evident in the insulation, visibility, and layout of controls. Externally, the rugged body design and optional box body configurations are optimized for high-volume loads. It also features robust bumpers, durable headlamps, and a high ground clearance to handle harsh site conditions.

  Summary

  Combines a comfortable, driver-friendly interior with a durable and functional exterior design.
